World's safest and most efficient
GREEN PROPULSION SYSTEM
I-Booster
At Manastu Space, we are developing the world’s safest and most efficient green propulsion system to replace the highly toxic, carcinogenic and inefficient fuel of the satellite. Manastu has built a novel propellant MS-289 which is a proprietary blend of Hydrogen-peroxide and additives which is combusted by a novel high temperature catalysts to enable this high performance.
.png)
50% Higher Performance
Due to higher combustion temperature and higher density of our fuel and engine design
>20x More Agile
Agile System due to ability to produce higher thrust compared to Electric Propulsion
Green & Affordable
Fuel is as safe as common salt, hence less safety precuations and less infrastructure cost.
Technical Specifications
(for >100 kg satellites)
Type
Monopropellant
Thrust Class
0.5N, 1N, 10N, 22N
Specific Impulse
>260 s
Total Impulse
> 10,000 Ns
Propellant mass
4 kg (with safety margin)
Mass Dry/Wet
6 kg / 10 kg
Density Specific Impulse
>320 s
Dimensions
600 * 600 * 300 mm
Collision Avoidance System
for Cubesat
We are working on a dedicated debris collision avoidance system based on a high performance green propulsion system. This system can operate with a primary propulsion system for satellites. One of the major features of this system is operation in short duration. As per the data from Space Situational Awareness system, thrusters are operated with inputs from OBC to reduce the fuel requirement. At the end of the mission life, same system can be used for the deorbiting the satellite.
Vyom 1U Module
Technical Specifications
(for 5U to 24U+ satellites)
Type
Monopropellant
Thrust
0.5N, 1N
Specific Impulse
>250 s
Total Impulse
> 1200 N-s
Propellant mass
500 g (with safety margin)
Mass Dry/Wet
900 g / 1400g
Dimensions
100 * 95 * 95 mm

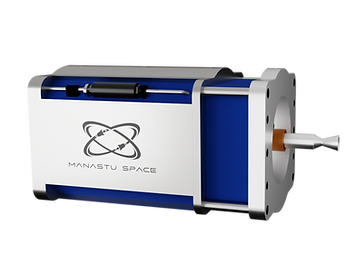

Vyom 2U Module
Technical Specifications
(for 5U to 24U+ satellites)
Type
Monopropellant
Specific Impulse
>250 s
Thrust
0.5N, 1N
Total Impulse
>2700 N-s
Propellant mass
1100 g (with safety margin)
Mass Dry/Wet
1200 g / 2300 g
Dimensions
200 * 95 * 95 mm
